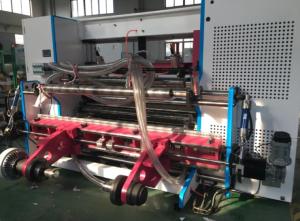

Shaftless ATM Thermal Paper Roll Slitter Rewinder 1400mm

  • 1
  • 2
  • 3

Brand Name : EcooGraphix

Model Number : Ecoo T-1400C

Certification : ISO9000, CE

Place of Origin : China

MOQ : 1 SET

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 500 Sets/Year

Delivery Time : 45 Days

Packaging Details : Standard Export Packing

Classification : Thermal Paper Slitting Rewinding Machine

Max. Unwinding Width : 1400mm

Max. Unwinding Diameter : 1200mm

Max. Rewinding Diameter : 310mm

Min. Slitting Width : 25mm

Max. Machine Speed : 210m/min

Unwinding Shaft : Hydraulic Shaftless Unwinder to Fix 3'' 6''

Rewinding Shaft : 0.5'', 1'' or as your request

Contact Now

1400mm Shaftless Thermal Paper ATM Paper Roll Slitter Rewinder




*** *** *** *** *** *** *** *** *** *** *** *** *** *** *** ***

Application Material
All sorts of thermal paper, including fax paper, cash register paper, ATM paper, medical record paper, self-adhesive trade marks, films and so on for thermal paper slitting rewinding machine.



*** *** *** *** *** *** *** *** *** *** *** *** *** *** *** ***

Specifications
Model
Ecoo T-1400C

Max. Unwinding Width
1400mm

Max. Unwinding Diameter
1200mm

Max. Rewinding Diameter
310mm

Min. Slitting Width
25mm

Max. Machine Speed
210 m/min

Main Power
3.7Kw

Total Power
6kw

Unwinding Shaft
Hydraulic Shaftless Unwinder to fix 3'' 6'' core

Rewinding Shaft
0.5'', 1'' or as your request

Weight
4000 kgs

Overall Dimension
3100*2100*1900mm
Model Ecoo T-1400C
Max. Unwinding Width 1400mm
Max. Unwinding Diameter 1200mm
Max. Rewinding Diameter 310mm
Min. Slitting Width 25mm
Max. Machine Speed 210 m/min
Main Power 3.7Kw
Total Power 6kw
Unwinding Shaft Hydraulic Shaftless Unwinder to fix 3'' 6'' core
Rewinding Shaft 0.5'', 1'' or as your request
Weight 4000 kgs
Overall Dimension 3100*2100*1900mm



*** *** *** *** *** *** *** *** *** *** *** *** *** *** *** ***

Technical Parameters



Unwinding Section
Hydraulic Shaftless Unwinder to fix 3'' 6'' core which more easier to loading material
Electromagnetic Brake from Taiwan
Fully automatic tension controller
One set of Photocell to tracking the precision


Slitting Section
Disc cutter
Cutter with adjustable and movable blade base.
Meter counter
Banana Roller which can avoid overlapping problem completely.




Rewinding Section
0.5", 1" or as your request
Surface Rewinding technology, it adopts vertical method to press the rewinding roll
Electromagnetic Clutch from Taiwan
Surface Rewinding technology
Automatic cutting & gluing unit

Controlling Section
Siemens PLC & HMI from Germany
All the parameters are displayed on the monitor
Low voltage electrical appliances all from S chneider

Trimmed Waste
It adopts air blower to blow waste material off, the air blower power is 0.75kw.
Air blower pipe is more wear-resisting.


Optional
Safety guard for the slitting device.
Emergency Switches on the 4 corner of machine.
Wrapping Line



*** *** *** *** *** *** *** *** *** *** *** *** *** *** *** ***

Producing And Packaging
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

Shaftless ATM Thermal Paper Roll Slitter Rewinder 1400mm

Shaftless ATM Thermal Paper Roll Slitter Rewinder 1400mm

Shaftless ATM Thermal Paper Roll Slitter Rewinder 1400mm

Shaftless ATM Thermal Paper Roll Slitter Rewinder 1400mm

Shaftless ATM Thermal Paper Roll Slitter Rewinder 1400mm
Shaftless ATM Thermal Paper Roll Slitter Rewinder 1400mm
Shaftless ATM Thermal Paper Roll Slitter Rewinder 1400mm



*** *** *** *** *** *** *** *** *** *** *** *** *** *** *** ***

Certificates
Shaftless ATM Thermal Paper Roll Slitter Rewinder 1400mm
Shaftless ATM Thermal Paper Roll Slitter Rewinder 1400mm



*** *** *** *** *** *** *** *** *** *** *** *** *** *** *** ***

FAQ

Q1: What are your main products ?

A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.


You can get the equipment and consumables all in one and no worry about the after-sales service from our company.



Q2: Where is your factory ?

A: Our CTP Processor machine factory is in Shanghai, you are warmly welcome to visit our factory!



Q3: How long is the lead time ?

A: The lead time is normally 30 days. We can accelerate for emergency cases.



Q4: Is there any certification for your machine ?

A: Yes, all our machines have been certified by SGS and CE.



Q5: How long is the warranty period ?

A: Ecoographix guarantees 1 year of warranty for laser head and spare parts.



Q6: What is your normal payment term ?

A: Normally, 30% TT deposit, 70% before shipping, or LC at sight.


Q7: What about the installation and after-sales technician support ?

A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.

These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
