Name: 46L Offset Printing Prepress CTP Plate Processor for Offline Manual Platesetter
Brand: ECOOGRAPHIX
Price: 1 USD

Brand Name : ECOOGRAPHIX

Model Number : P900

Certification : CE

Place of Origin : CHINA

MOQ : 1SET

Payment Terms : L/C, T/T

Supply Ability : 500SETS

Delivery Time : Within 20days

Packaging Details : Standard Export Packing

Price : Negotiable

Weight : 355KGS

Plate Size : 280-895mm

Plate Thickness : 0.15-0.40mm

Volume : 46L

Working Power : 4.5KW

Condition : New

Warranty : 1Year

Contact Now

Offset Printing CTP Plate Processor Pre press Plate Developing Equipment

Model: Ecoo P-900E

Page Size: Max width: 880mm; Min width: 280mm

Plate Thickness: 0.15-0.40mm

Processor Power: Speed adjustable (10-60 seconds) 400-1000mm/minutes

Temperature: 10 to 45ºC can be adjusted ( automatic temperature control, cooling system)

Developing Capacity: 46L

Drying Temperature: 20-65ºC can be adjusted

Electricity Requirement: 220V (208V-240V) single-phase 50 or 60hz

Working Power: 4.5KW

Weight: 355kg

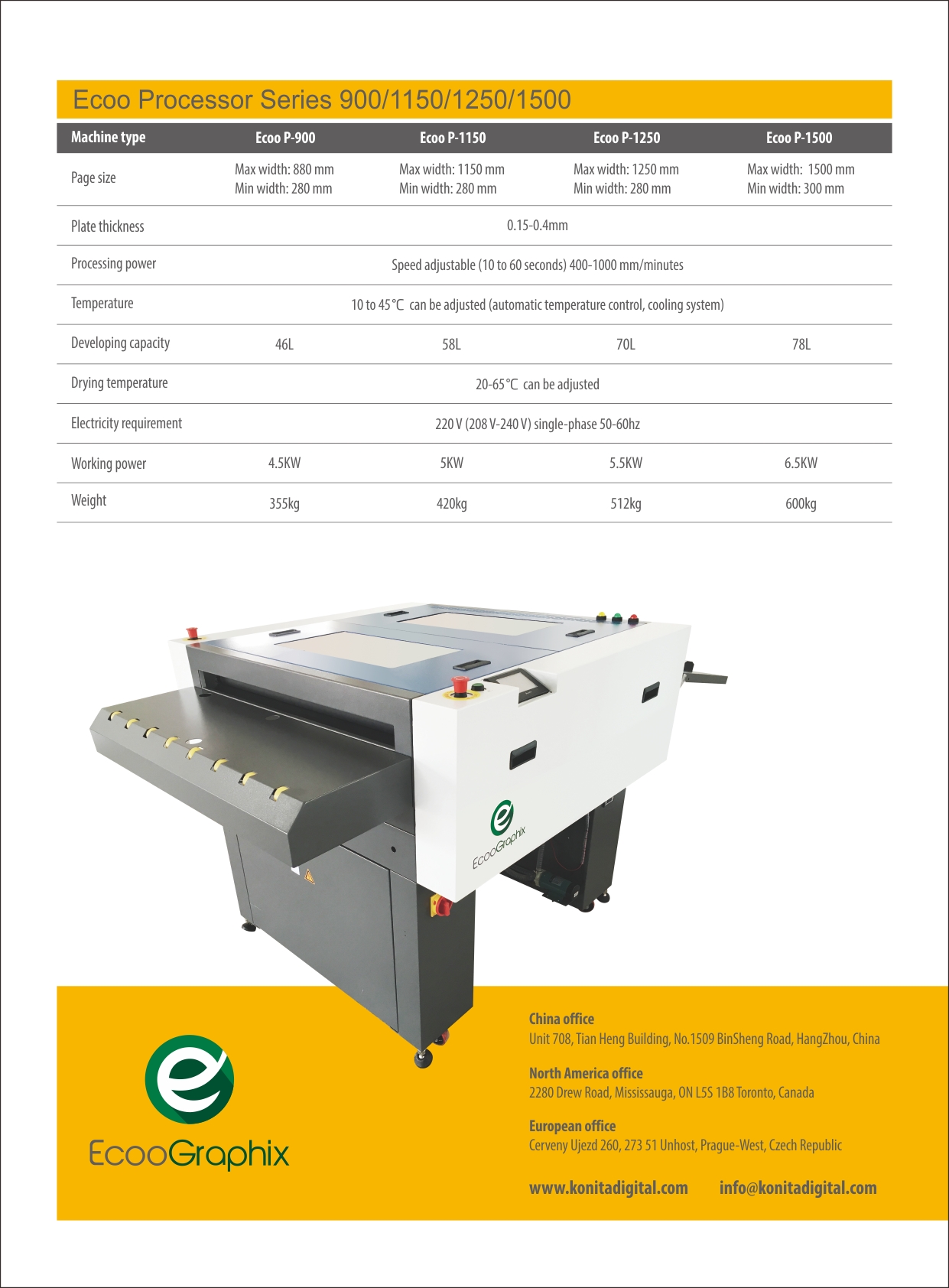

Machine Type	ECOO-P900E	ECOO-P1150E	ECOO-P1500E
Page Size	280-895 mm	280-1150 mm	290-1500 mm
Plate thickness	0.15-0.4mm	0.15-0.4mm	0.15-0.4mm
Processor Power	10-60 seconds	10-60 seconds	10-60 seconds
Temperature	10 to 45 ºC can be adjusted (automatic temperature control, cooling system)
Developing Capacity	46L	58L	76L
Drying Temperature	20-65 ºC can be adjusted
Electricity Source	220 V (210V-240 V)single-phase50-60hz
Work Rate	4.5KW	5KW	7.5KW
Net.Weight	320kg	340kg	800kg

46L Offset Printing Prepress CTP Plate Processor for Offline Manual Platesetter
