Brief introduction & application

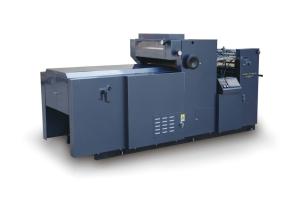

The Ecoo CF 620A UV coating machine can do spot UV and overall UV coating on printed matter and packaging products such as the books, posters, adhesive stickers etc.
This machine is consist of Auto feed system, vanishing system, curing system and auto delivery system. It not only improves the quality of printed materials, but also increases the value of the products, makes more profits for printing companies. Because of the high speed and efficiency, it is getting very good reputations from clients all over the world.
Technical data
| Overall Coating Machine |
| Model | Ecoo CF-620A |
| Max.sheet size | 620×450mm |
| MIN.sheet size | 260×190mm |
| Sheet weight | 60-350g/m2 |
| Production speed | 5500 sheet/hour |
| Power | 15KW |
| UV lamp | 2pcsx5.6kw |
| Weight | 1200KG |
| Dimension | 2950×1200×1450mm |
why UV coating
the advantages
- Striking & bold: The ultraviolet coating creates a high gloss, vibrant finish that can significantly enhance the visual appeal and perceived value of the packaging or product.
- Scuff resistant: It also offers a higher level of scuff resistance in comparison to aqueous coatings and varnishes. UV coated items resist abrasion quite impressively, though the type of coating will also influence the smudge resistance.
- Fast drying: Quick-drying helps ensure a reduction in lead time and a more efficient process overall.

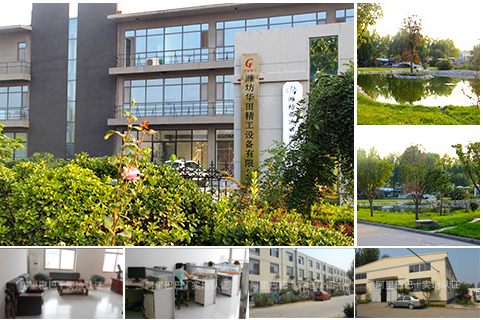

Our factory
FAQ
1. What are your main products ?
Our main products are printing related machine and consumables and parts and instruments.
2. Where is your factory ?
Our CTP machine factory is located in Hangzhou city , which is about 1.5 hour by train from Shanghai.
You are warmly welcomed to visit our factory!
3. What is your warranty?
Normally we offer 1 year warranty.
4. What is the Lead Time?
Usually 30 days, and we will try our best to meet your demands.
5. Can you also supply the Workflow and other supporting device.
Yes, we offer full range of prepress, pressroom, postpress machine and consumables to make our customers' purchage easy and one-stand. We can also help our customer to source in Chinese government and do the quality contriling jobs.
6. What about the Installation and after-sales technician support?
Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
