Digital Offset Printing Plate Low Chemical Violet Photopolymer

Name: Digital Offset Printing Plate Low Chemical Violet Photopolymer
Brand: EcooGraphix
Price: 1 USD

China Digital Offset Printing Plate Low Chemical Violet Photopolymer wholesale

Brand Name : EcooGraphix

Model Number : ECOO-V

Certification : ISO9000, CE

Place of Origin : China

MOQ : 1000 Square Meters

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 2,000,000 Sqm Per Year

Delivery Time : 30 Days

Packaging Details : Standard Export Packing

Length of Run (Impressions) : Unbaked: 200,000 impressions; Baked:500,000 impressions(dependent upon image resolution, press, press chemical, ink and paper conditions)

Resolution : 150lpi (2-98%), under1800dpi, 25um line can be produced.

Plate Type : Low chemistry violet plate, negative printing

Substrate : Electro chemically Grained and Anodized Aluminum

Maximum short grain width : Maximum width 1320 mm

Exposure energy : 50-60uj/ Squre Centimeters

Spectral Sensitivity : 405 nm

Brush Speed : 100 rpm

Contact Now

Digital Offset Printing Plate Low Chemical Violet Photopolymer

Model: ECOO-V

This violet CTP plate is a kind of plate specialized for violet CTP platesetters for high-level printing, which can be scanned by 410nm laser controlled by computer, and mounted on the press for printing after preheating, rinsing, developing, etc.

The plate has applied many latest technologies like excellent roughed aluminum substrate, high-resolution formulation design and advanced Multi-layer Coating Technology. These advanced technologies ensure the high quality and stable property.

Model	ECOO-V
Plate Type	Low chemistry violet plate, negative printing
Application	Newspaper Printing
Substrate	Electro chemically Grained and Anodized Aluminum
Gauge	0.20, 0.25, 0.30, 0.40(mm)
Maximum short grain width	Maximum width 1320 mm
Developer	Developing gum
Length of Run	Unbaked: 200,000 impressions; Baked: 500,000 impressions(dependent upon image resolution, press, press chemical, ink and paper conditions)
Plate setters Capability	All the main brands violet CTP in market, laser power no less than 30 mw
Aluminum	Standard 1050 Alloy
Exposure energy	50-60 μj/ cm²(based on plate setter and developing condition)
Developing time	20±3 sec
Developing Temperature	28±2ºC
Spectral Sensitivity	405 nm
Resolution	150lpi (2-98%), under1800dpi, 25μm line can be produced.
Preheat	95-121ºC
Brush Speed	100 rpm
Shelf life	12 months under recommended storage conditions
Storage and handling	Store plates flat in their packaging, away from excessive cold, heat or high humidity. Recommended condition is: temperature 15-28ºC and RH between 30-70%; Handle with care, the maximum height is 1.2m' Open the box under yellow light. Sealed the box with remained plate to avoid moisture.

1. Simplifying the processing, only 3 steps including preheating, developing, and drying.

2. Redusing chemical consuption, saving water.

3. Weak alkali developer maximumly avoid developing inconsistency due to exhausted developer. It makes print wuality more stable.

Features:

1. Eco-Friendly: applied with low PH finisher during washout treatment, reducing chemical consumption and liquid waste

2. Stable Developing Performance: compatible with most brands of violet plate developer and less sensitive to PH value of finisher

3. Lower Investment and Maintenance Cost: can work with simplied processor, which removes prewash, post-rinse and gumming steps from conventional processor

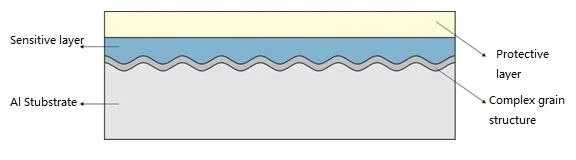

4. Higher Run Length: outside protective layer protects sensitive layer from damage, making more impressions per plate.

Digital Offset Printing Plate Low Chemical Violet Photopolymer

Q1: Can I get the sample?

A: We are very glad to provide some sample for you to test. We usually provide 5-15pieces plates for free,but sincerely hope to get your kind support for the air courier freight. This cost can be returned to you in your first order.

Q2: What is the cost for the CTP plate sample freight?
A: The Air freight depends on the packing size and weight, and the delivery destination. Or you can arrange the Pick-up service from your local agent.

Q3: How long can the sample be ready?
A: It usually takes about 3days to prepare the sample.

Q4: Can I visit your factory?
A: You are warmly welcomed to visit our factory! Our company is in Hangzhou city,which is about 1.5 hour by train from Shanghai.

Q5: How many Square Meters CTP plates can feed one 20' container?
A: About 20000-25000SQM

Q6: Can I take my own brand and label on the packing?
A: Yes, we can provide the OEM with the customer's brand and label.
