4UP 24 - 48 Channel UV / CTCP Plate Making Machine Computer To Plate CTP

Name: 4UP 24 48 Channel UV CTCP Plate Making Machine Computer To Plate CTP
Brand: EcooGraphix
Price: 1 USD

China 4UP 24 - 48 Channel UV / CTCP Plate Making Machine Computer To Plate CTP wholesale

Brand Name : EcooGraphix

Model Number : Ecoosetter UV-400F

Certification : CE, ISO900

Place of Origin : CHINA

MOQ : 1SET

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 500 SETS/YEAR

Delivery Time : 30-45 days

Packaging Details : Standard Exporting Package

Product name : 4UP 24-48 Channel UV/Ctcp Plate Making Machine CTP

Resolutions : 2400dpi

Exposing Mothod : External Drum

Imaging System : 48 Channel

Throughput : 28 Plates/Hour;800mm x 660mm ,2400dpi

Plate Size : Max.800mm X 660mm; Min.400mm X 300mm

Exposing Size : Max.800mm X 646mm; Min.260mm X 284mm

Plate Thickness : 0.15mm to 0.30mm

Power Supply : Single phase:220AC, power Consumption: 4kw

Contact Now

Product: EcooGraphix UV-CTP(CTCP Machine) UV-400F

Introduction:
EcooGraphix Conventional CTP(UV-CTP/CTCP) Plate Making Machine is the first Prepress necessity of quick short-run offset printing. It can output the images on the computer to printing CTP plate directly through the CTP machine and save the film and labor.

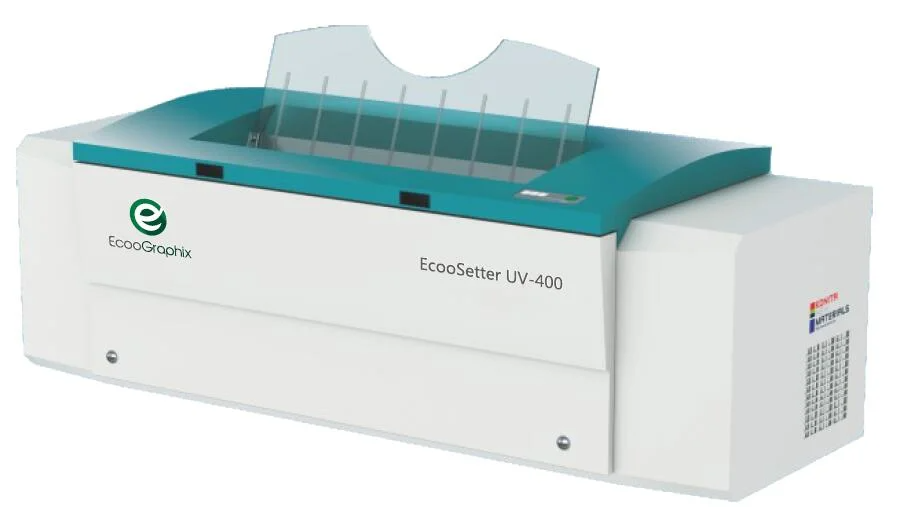

4UP 24 - 48 Channel UV / CTCP Plate Making Machine Computer To Plate CTP

Specification:

Model: EcooSetter UV-400F
Laser wavelength: 400-410nm
Plate: UV plate, high-sensitive PS plate
Exposing Method: External Drum
Imaging System: 48-channel
Throughput: 28 plates per hour, 800mmx660mm 2400dpi
Plate Size: Max. 800mmx660mm Min. 400x300mm
Plate Thickness: 0.15mm to 0.3mm
Resolutions: 2,400dpi
Repeatability: ±5μm(continuous exposing for four times or above on the same plate with a temperature of 23ºC and humidity of 60%)
Interface: USB2.0
Weight: 800KG
Size: 1900×1200×1000mm(W×D×H)
Power Supply:single-phase: 220AC+6%,-10%;Power Consumption:4KW
Environment:recommended: 21-25ºC,max.18-26ºC,humidity:40-70%

Model	UV-400 series	UV-800 Series
Exposing Method	External Drum	External Drum
maging System	24/32/48 channel	32/48/64 channel
	Discrete 405nm laser diode	Discrete 405nm laser diode
Throughput	16/22/28 PPH	16/22/28 PPH
	800mm x 660mm, 2400dpi	800mm x 1030mm, 2400dpi
Plate Sizes	Max. 800mm x 660mm	Max. 1130mm x 920mm
	Min. 260mm x 300mm	Min. 400mm x 300mm
Exposing Size	Max. 800mm x 646mm	Max. 1130mm x 920mm
	Min. 260mm x 284mm	Min. 400mm x 300mm
Media Type	Positive 405nm conventional plate	Positive 405nm conventional plate
Plate Thickness	0.15mm to 0.30mm	0.15mm to 0.40mm
Resolution	2400dpi	2400dpi
Repeatablity	±5μm(Continuous exposing for 4 times or above on the same plate with a temperature of 23ºC and humidity of 60%)
nterface	USB 2.0	USB 2.0
Plate Loading	Semi automatic	Semi sutomatic
Net Weight	800kg	900kg
Machine Size	1900 x 1200 x 1000	2320 x 1080 x 960
(WxLxH)mm
Power Supply	Single phase: 220AC, +6%, -10%,	Single phase: 220AC, +6%, -10%,
	Power Consumption: 4KW	Power Consumption: 4KW
Environment	Recommended: 21-25ºC,	Recommended: 21-25ºC,
	Max. 18-26ºC, Humidity: 40-70%	Max. 18-26ºC, Humidity: 40-70%

4UP 24 - 48 Channel UV / CTCP Plate Making Machine Computer To Plate CTP

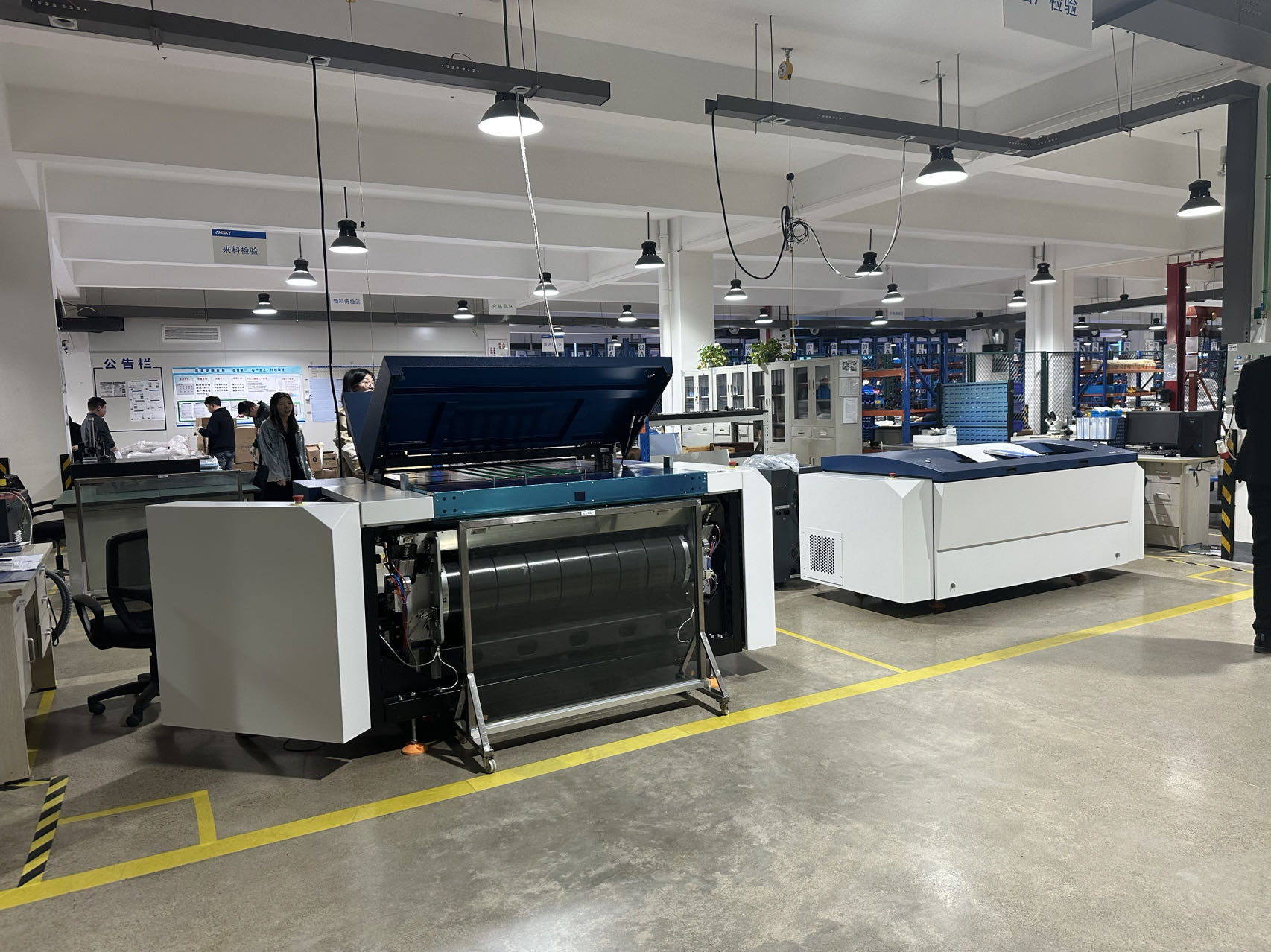

Producing And Packaging:

4UP 24 - 48 Channel UV / CTCP Plate Making Machine Computer To Plate CTP

More details:

4UP 24 - 48 Channel UV / CTCP Plate Making Machine Computer To Plate CTP

FAQ:

What about the Installation and After-sales technician support?

Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular on site visits.

These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintenance. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
